Performance Demonstration Blocks and Frames

Performance Demonstration Blocks allow validation of coverage and quick equipment calibration. Eclipse has many varieties of blocks to cover a wide range of plate thickness.

Standard Calibration Blocks

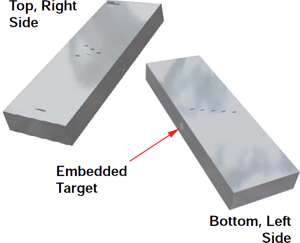

Carbon steel block with notch patterns in both top and bottom sides of block. Side targets on right side of block and embedded target on left side.

Standard length = 18”, width = 6” (457 x 152 mm)

  • CBK-11007 4” (100 mm) thick
  • CBK-11008 2” (50 mm) thick
  • CBK-11009 1” (25 mm) thick
  • CBK-11010 1/2” (12.5 mm) thick

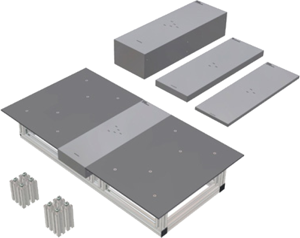

Standard Calibration Block Kit

Steel support plates to hold large scanners true and level for accurate scanning.

Standard length = 34”, width = 18”, height = 5.5”(863 x 457 x 140 mm)

Includes the following items:

  • 1x Set of all four Standard Calibration Blocks (CBK)
  • 1x Mounting Frame with Spacers for four standard block thicknesses

Pipe Calibration Blocks

Custom made calibration blocks for pipe applications. OD and ID targets precision EDM to specific code case to suite your specific pipe needs.
